Use case : First-touch attribution

While the primary motivation of this project is technical—exploring Flink processing with Fluss—the chosen use case is designed to naturally exercise the key features under evaluation.

In particular, this use case allows us to leverage:

a lookup join
a delta join
a materialized table
the first_row merge type

These requirements are not introduced arbitrarily; they emerge from a common marketing analytics problem: attribution.

The goal of this data transformation is to answer the following business question:

What brought the user into the funnel?

To answer this, we identify the first interaction (event) a customer had within the 7 days leading up to a purchase. This “first touch” event is then associated with the corresponding order, enabling attribution of the conversion origin.

The resulting data mart, mart_order_first_touch, consolidates this information from the following source tables:

sale_order: contains order-level information
customer: provides customer details
event: stores user interactions (e.g., website visits, clicks, etc.)
campaign: describes marketing campaigns linked to events

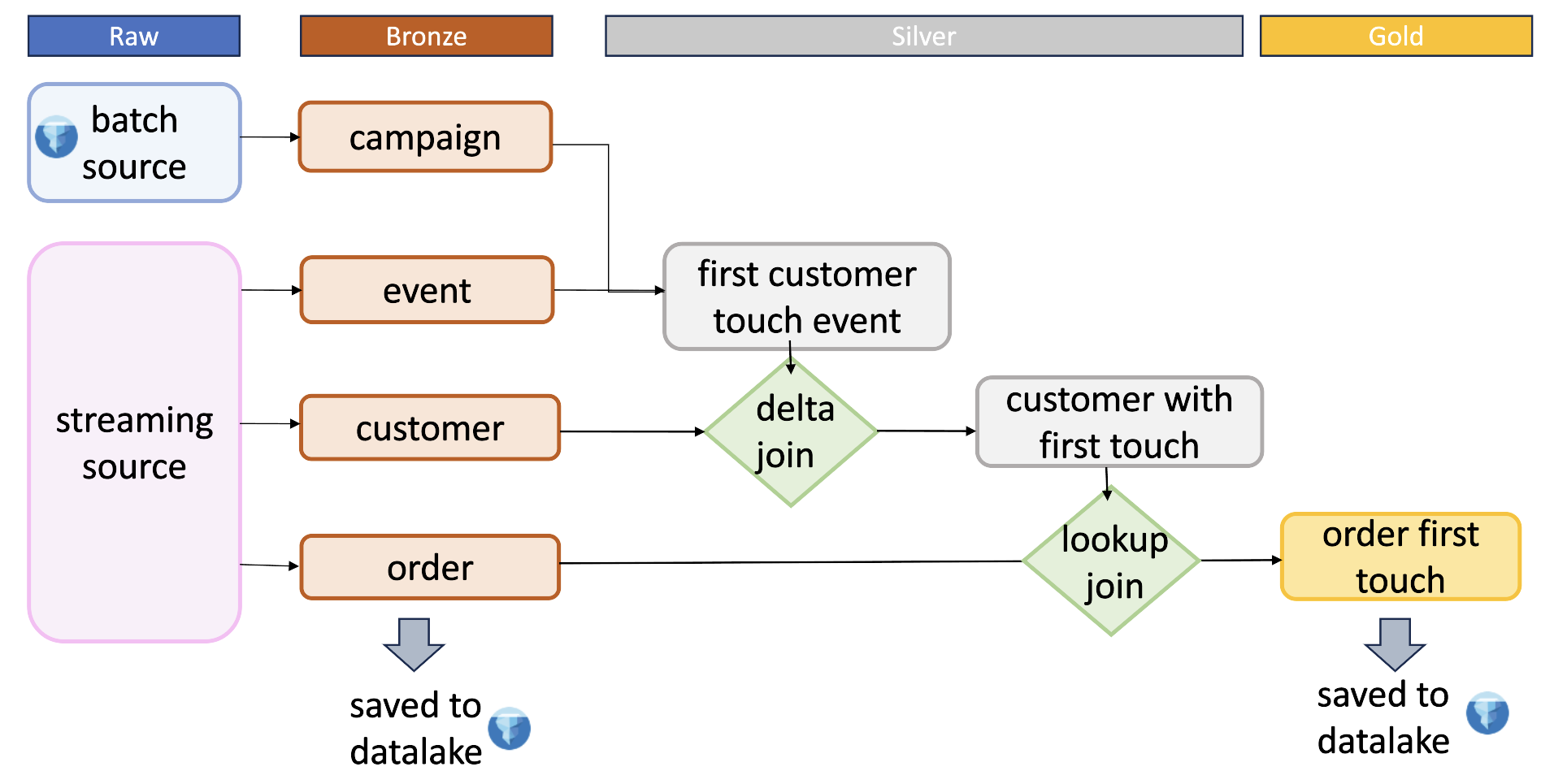

Structure

The transformations follows the medallion model with the 3 layers ( bronze, silver , gold).

This is very simple as a first brick is made from customer and event data which is then joined with the order data.

Mart

Column Name	Data Type	Description
order_id	STRING	Unique identifier for each order (primary key, not enforced)
customer_id	STRING	Identifier of the customer who placed the order
order_timestamp	TIMESTAMP	Timestamp when the order was placed
total_amount	DECIMAL	Total monetary amount of the order
customer_segment	STRING	Segment category assigned to the customer
customer_acquisition_channel	STRING	Channel through which the customer was acquired
first_touch_event_id	STRING	Identifier of the first marketing/event interaction for the customer
first_touch_timestamp	TIMESTAMP	Timestamp of the first customer interaction
first_touch_event_type	STRING	Type of the first interaction event (e.g., click, view)
first_touch_campaign_name	STRING	Name of the campaign associated with the first interaction
delta_first_touch_to_order	TIMESTAMP	Time difference between first touch and order
_tech_write_ts	TIMESTAMP	Technical timestamp indicating when the record was written

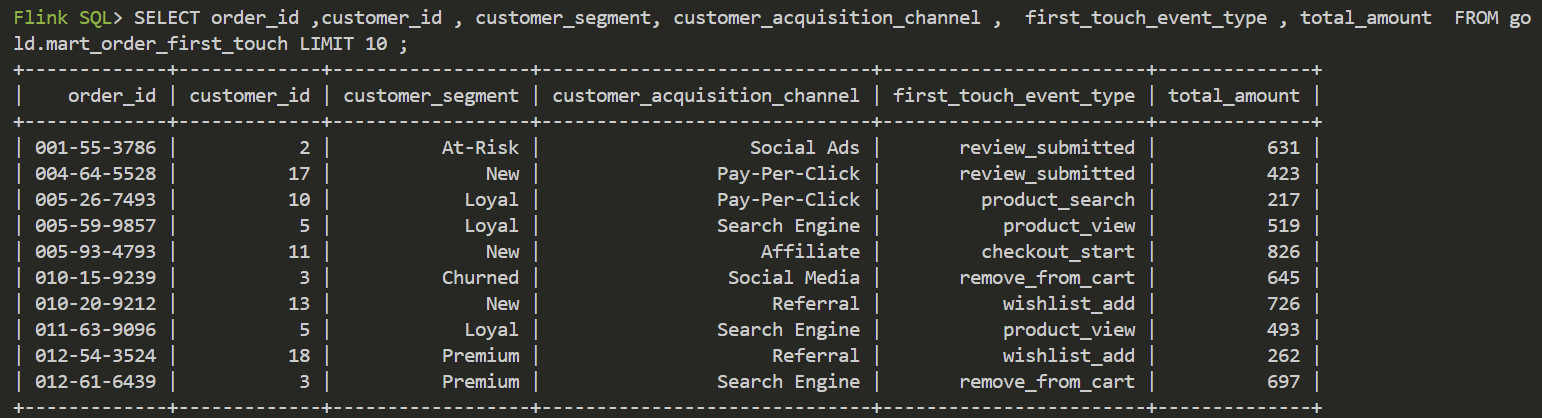

Here is what data would look like :

Data Used

Event

Column Name	Data Type	Description
event_id	STRING	Unique identifier for each event (primary key, not enforced)
customer_id	STRING	Identifier of the customer associated with the event
event_type	STRING	Type of event (e.g., click, view, purchase)
campaign_id	STRING	Identifier of the marketing campaign linked to the event
event_ts	BIGINT	Event timestamp (typically in epoch format)

Sale Order

Column Name	Data Type	Description
order_id	STRING	Unique identifier for each order (primary key, not enforced)
customer_id	STRING	Identifier of the customer who placed the order
total_amount	DECIMAL(10, 2)	Total monetary amount of the order
order_ts	BIGINT	Order timestamp (typically in epoch format)

Customer

Column Name	Data Type	Description
customer_id	STRING	Unique identifier for each customer (primary key, not enforced)
email	STRING	Customer email address
phone	STRING	Customer phone number
segment	STRING	Customer segmentation category
acquisition_channel	STRING	Channel through which the customer was acquired
country	STRING	Country of the customer
opt_in	BOOLEAN	Indicates whether the customer opted in for communications
last_purchase_ts	BIGINT	Timestamp of the customer’s last purchase (epoch format)

Campaign

Column Name	Data Type	Description
id	INT	Unique identifier for a campaign
name	STRING	Name describing the campaign
